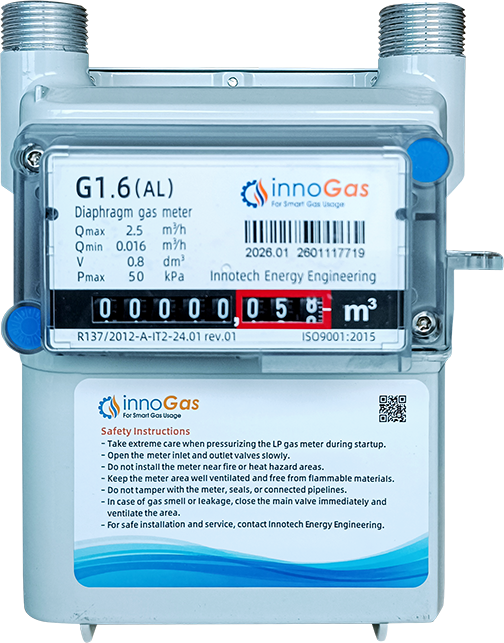

Diaphragm Gas Meter
G1.6 AL
Precision meets durability with the InnoGas G1.6 AL—the compact, high-accuracy diaphragm gas meter designed for residential LPG systems.

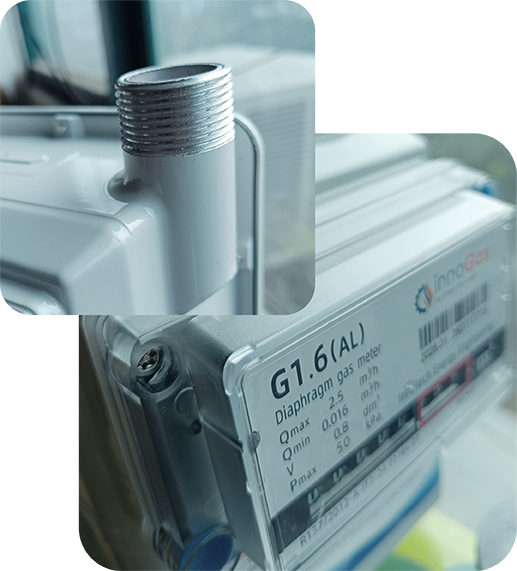

Why Choose the G1.6 AL?
- Precision Engineering: Features a stadium-shaped synthetic diaphragm and patented K-system slide control for ultra-high accuracy.
- Built to Last: Robust aluminum housing with high-grade components resistant to contamination.
- Smart-Ready: Incorporated remote reading purpose with magnetic driving technology.
- Whisper Quiet: Designed for low noise levels and stress-free mechanical movement.

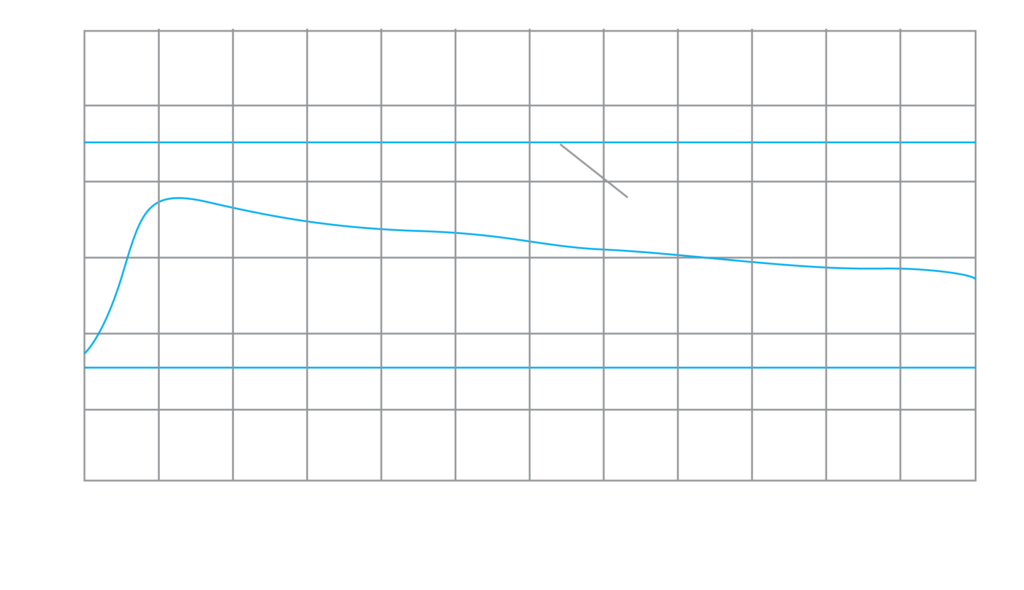

Typical Error Curve
Maintains accuracy within EN 1359 standards across all flow rates.

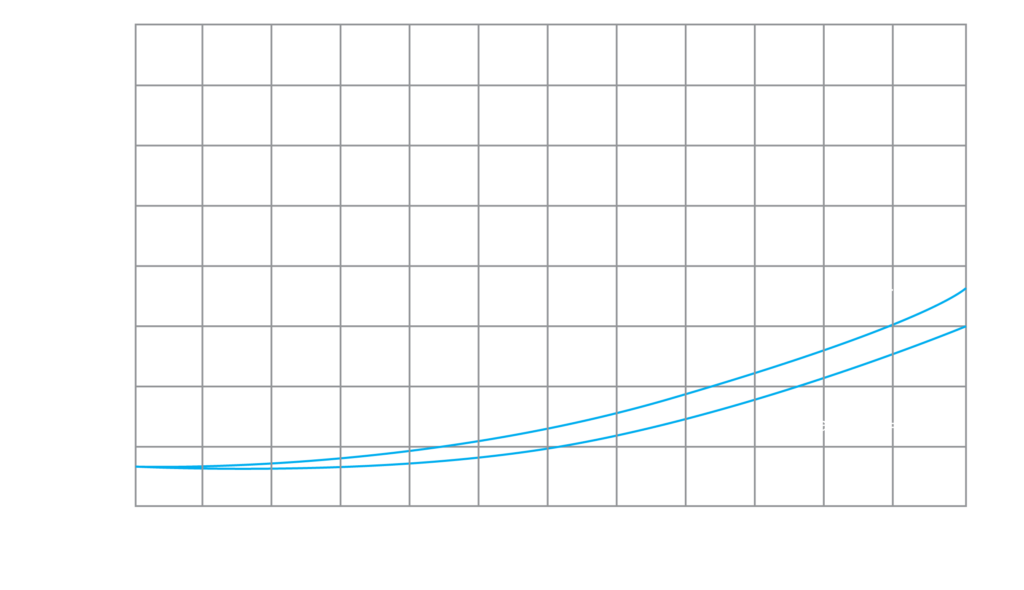

Pressure Drop Curve
Optimized for minimal pressure loss, even at maximum flow (2.5m³/h).
Product Specifications
| Flow Rate Range | 0.016 m³/h to 2.5 m³/h |
|---|---|
| Max Working Pressure | 1.0 bar WT |
| Operating Temp | -20°C to +50°C |
| Body Material | High-grade Aluminium |
| Connector Size | NPT 3/4 (M30/2) |
| Weight | 1.4 Kg |
Maintains accuracy within EN 1359 standards across all flow rates.

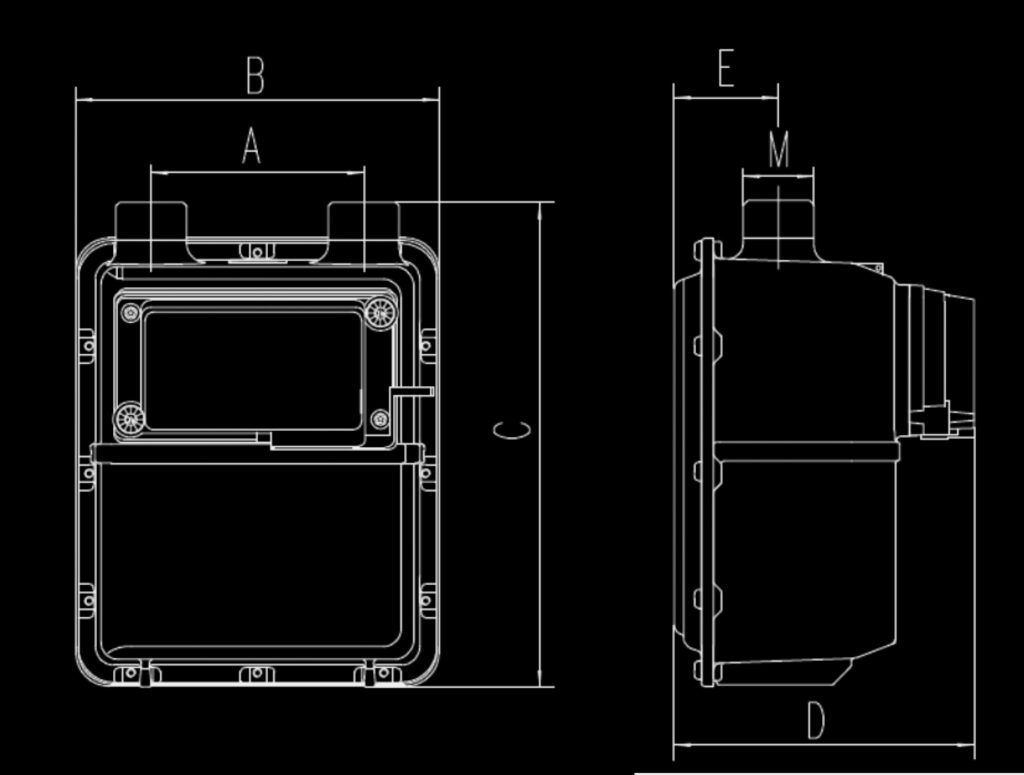

Dimensions & Installation
- A (Width between ports): 140mm
- B (Total Width): 160mm
- C (Total Height): 210mm
- D (Depth): 140mm
Note: The internal measuring unit is adjusted by a patented needle and scale system to ensure long-term stability in residential environments.
Certified Excellence
We don’t just claim quality; we prove it. The G1.6 AL is fully certified by international bodies. EN 1359 (Approved by Istituto Giordano, Italy), OIML R137 Certifications
